Why do we need to integrate angular with portlet?

Single Page Application (SPA) is an application that fits on a single web page with dynamic actions without refreshing the page. To build SPA we can use Angular - an open source SPA framework. To create Single Page Application using Angular(formerly known as AngularJS) in liferay portlet, it is necessary to integrate angular with the portlet.

Prerequisite:

Before visiting this blog, please make sure you must have a basic idea of angular and how to create mvc portlet .

Environment requirements:

  • Liferay IDE v3.0+
  • Liferay Portal 7.0.2 CE GA3 / Liferay DXP
  • JDK 8
  • Blade CLI
  • Gradle 3.0
  • node version : 4.7.0+
  • npm version :  5.5.1+

Creating MVC-Portlet Module:

  1. Create an MVC portlet by using Liferay IDE or Blade CLI and Edit following generated files.
    • bnd.bnd
      • Add these 2 lines at the end of file:
        • -includeresource: package.json
        • -plugin.npm: com.liferay.ant.bnd.npm.NpmAnalyzerPlugin
    • build.gradle
      • Add buildscript and plugin before dependencies: Create Pipeline

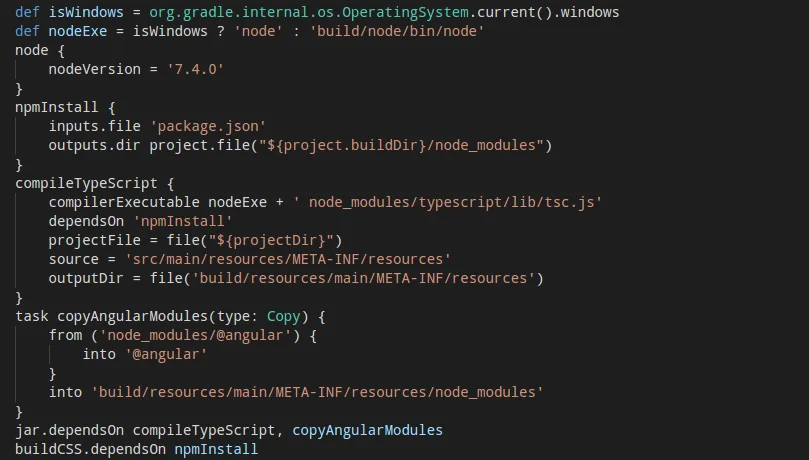

      • Add Gradle build tasks:- npmInstall, compileTypeScript,  copyAngularModules as described below.Create Pipeline

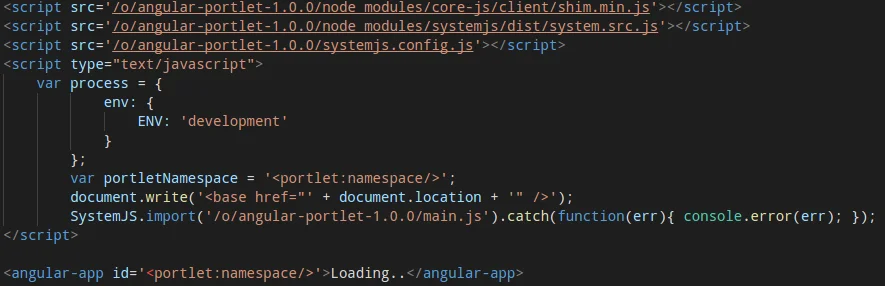

    • view.jsp
      • Add system scripts from node modules and configure environment  variable according to requirements.Create Pipeline
      • Change angular-portlet-1.0.0 with <YOUR-PORTLET-NAME>-1.0.0
      • Change selector name (e.g.  angular-app)  according to index.html
  2. Create following angular resources:
    • package.json inside( /modules/angular-portlet/ ) : Used to manage locally installed npm packages.You can add or remove packages according to your requirements.
    • tsconfig.json inside( /modules/angular-portlet/ ) : It is a typescript configuration file to guide the compiler as it generates javascript files.
    • index.html, main.ts, polyfills.ts inside(/modules/angular-portlet/src/main/resources/META-INF/resources/) :
      • index.html : Main layout file
      • main.ts : It is the entry point of application, compiles the application with just-in-time and bootstraps the application’s root module.
      • polyfills.ts : Many browsers lack native support for some features in the latest HTML standards, features that Angular requires. "Polyfills" can emulate the missing features.
      • Create new folder : e.g.  app  (/modules/angular-portlet/src/main/resources/META-INF/resources): Create files app.component.ts, app.module.ts inside this folder
        • app.component.ts : The main component
        • app.module.ts : An Angular module class describes how the application parts fit together.
  3. Add this file to configure angular with liferay:
    • systemjs.config.js inside( /modules/angular-portlet/src/main/resources/META-INF/resources/ ) :It is used to tell SystemJS where to look when we import a module.

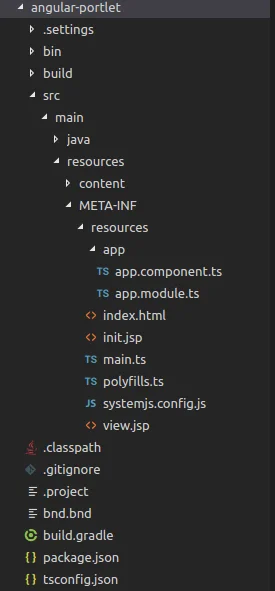

                            Now, project structure will look like :

      Create Pipeline
  4. Update angular resources created in step 2 to bootstrap angular in portlet:
    • package.json : Add dependencies and devDependencies according to your project need and also change angular version to 5.0.0Create Pipeline

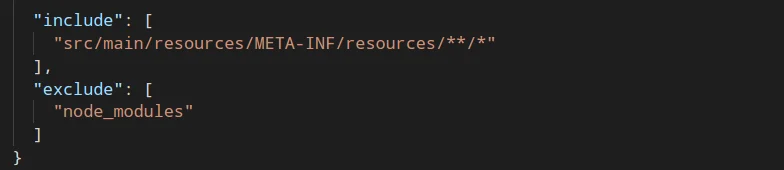

    • tsconfig.json : Add include and exclude directory paths to bundle required files.
    • index.html : html tag used to bootstrap App must match component selector.
    • main.ts :
      • Change bootstrapModule method likeCreate Pipeline
      • If you change selector name in app.component.ts, change angular-app with that name in main.ts as well.

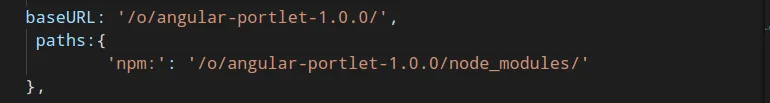

    • systemjs.config.js : Change web context path in this file according to your portlet name.Create Pipeline
    • polyfills.ts : Update polyfills.ts file with the following codeCreate Pipeline

Deployment:

Run below blade commands to deploy angular portlet.

  • To build project run command: blade gw build
  • To create jar file for portlet run command: blade gw deploy

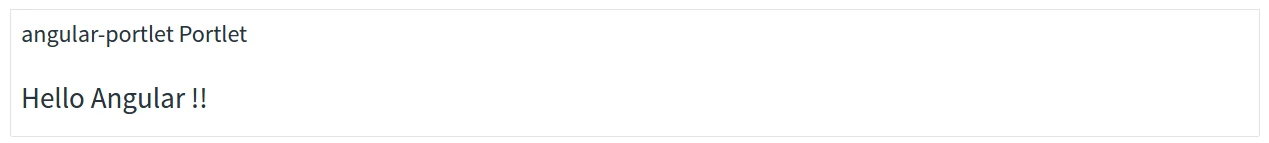

After deployment add portlet and it will look like :Create Pipeline
