Liferay Database migration from 6.2 to 7.1/DXP

Now, ready to upgrade database Liferay 6.2 to 7.1, Liferay 7.1/DXP gives upgrade tool to upgrade everything. It’s the best, most comprehensive thanks to upgrade tool provided by Liferay. Please follow below steps to upgrade database(Steps are given for both Ubuntu/Window).

Steps

  1. Create a new database for Liferay 7.1/DXP in MySQL server

    e.g. create database Liferay_dxp_db character set utf8

  2. Take backup and restore

    Create a database dump from liferay 6.2 database and restore that dump into a new liferay 7.1/DXP database

    • Open database terminal(Workbench)

    • Take back up

      mysqldump -u[username] -p[password] liferay_old_db > liferay_dump_file.sql

      - Linux

      To create dump file : mysqldump -uroot -proot liferay_old_db > liferay_dump_file.sql

      To restore dump file into new DB(Liferay 7.1/DXP) : mysql -uroot -proot liferay_dxp_db < liferay_dump_file.sql

      - Window

      Open CMD with administrator

      cd C:\Program files\MySQL\MySQL Server 5.7\bin

      run below command

      To create dump file : mysqldump -uroot -proot liferay_old_db > C:\liferay_dump_file.sql

      To restore dump file into new DB(Liferay 7.1/DXP) : mysql -uroot -proot liferay_dxp_db < C:\liferay_dump_file.sql

  3. Specify database connection properties

    Create a file ‘portal-setup-wizard.properties’ and specify the below DB connection properties within it:

    jdbc.default.driverClassName=com.mysql.jdbc.Driver
    jdbc.default.url=jdbc:mysql://localhost:3306/liferay_dxp_db
    jdbc.default.username=root
    jdbc.default.password=root


    Note: DO NOT START Liferay DXP server at this point. Otherwise, you will get an error like java.lang.RuntimeException

  4. Copy data

    Copy document_library (You can find from [Liferay Home]/data/) folder from Liferay 6.2 to Liferay 7.1/DXP, copy images folders into data folder also. This data will be stored in the default store and you can also choose your location, it's up to your choice.

  5. Disable indexer and autoUpgrade

    Now, we need to disable indexing since we are going to start the database upgrade process for our new environment. Using this we can disable reindexing content and performance issues to be arised. For this, we have to follow below steps.

    • Need to create file in liferay 7.1/DXP :

      "com.liferay.portal.search.configuration.IndexStatusManagerConfiguration.config" on this location [Liferay Home]/osgi/configs and add below content

      indexReadOnly="true"

    • Then create another file in the same folder :

      "com.liferay.portal.upgrade.internal.configuration.ReleaseManagerConfiguration.config" and add below content

      autoUpgrade="false"

  6. Configure the upgrade tool

    Unlike previous Liferay versions, here we just need to specify database configuration properties, and database upgrade process will run upon liferay server startup, Liferay 7.x provides a dedicated tool for database upgrade 'portal-tools-db-upgrade-client' in [Liferay Home]/tools folder

    Now, we need to configure below files before running the upgrade:

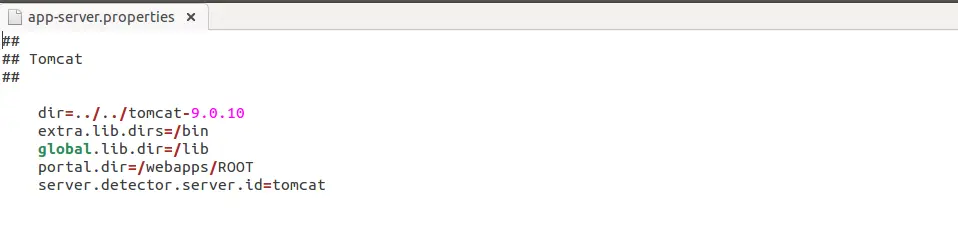

    • Tomcat configuration in Liferay

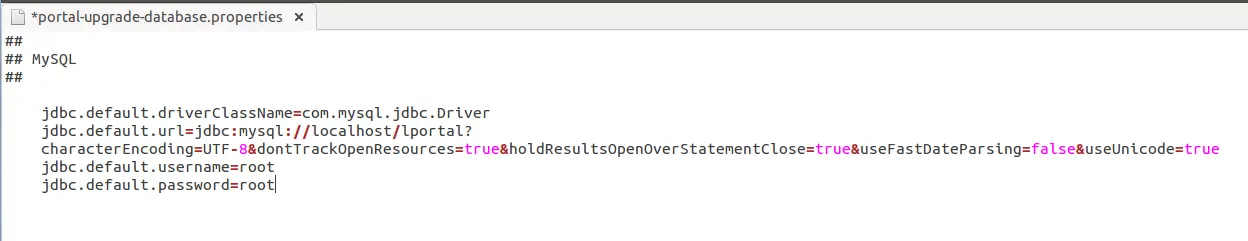

    • Liferay portal upgrade database properties

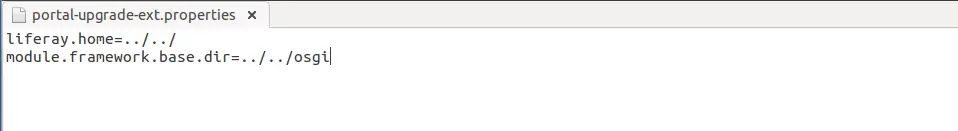

    • Liferay portal upgrade database ext.properties

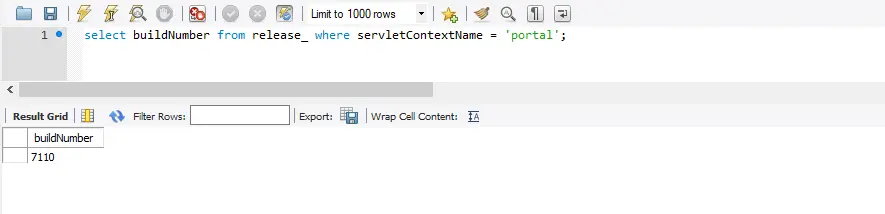

  7. Verify buildNumber

    We have to check a release buildNumber from DB before running the upgrade tool, it will be incremented after each deployment in Service Builder which is used for generating internal database persistence code.

    Using this query you can find current buildNumber:

    • Liferay 6203 buildNumber

      Run upgrade tool using below command (Path [Liferay Home]/tools folder) :

      For window

      Double click on “db_upgrade.bat” file

      For Ubuntu

      sh db_upgrade.sh

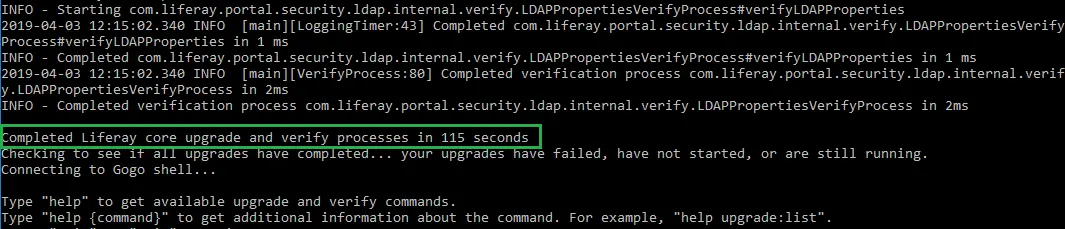

    • Liferay core upgrade
    • Liferay 7100 buildNumber
  8. Enabling indexer

    Now, The last and most important step is remaining which can only be taken post-upgrade and to enable indexer. For this, you have to modify the file "com.liferay.portal.search.configuration.IndexStatusManagerConfiguration.config" in the folder [Liferay Home]/osgi/configs with the following content

    indexReadOnly="false"


    Good job, You’re almost at the end. Now let’s start Liferay.
